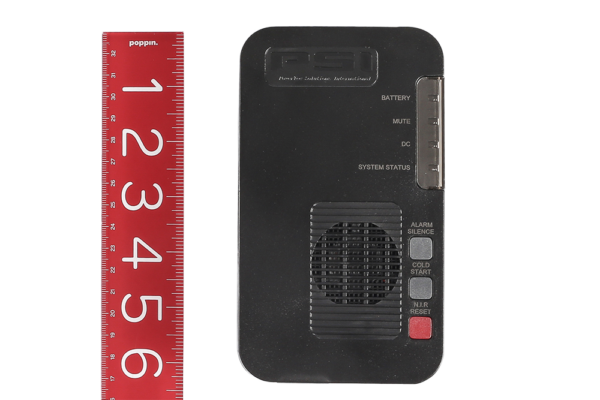

Li-36 Micro UPS


Product Overview

Designed as the World’s only scalable capacity Vdc UPS, the Li-36 Micro UPS is designed to supply continuous commercial and standby power to 12VDC Customer Premise Equipment (CPE). The Li-36 Micro UPS is rated for use with all CPE devices 12VDC 36 Watts (3 Amps) or less and offers PSI Patent Pending Stackable Battery technology to offer over 24 hours of backup, with up to 3 attachable battery packs. The Li-36 Micro UPS can be partnered throughout the home or small business to support one or multiple optical network terminals (ONT), optical network units (ONU), access points, wireless modems, routers, and embedded multimedia terminal adapters (eMTA). Designed for optimal performance and scalability the Li-36 Micro UPS also offers an optional PoE module for powering 48Vdc PoE enabled CPE Devices (i.e. Cameras, Access Points, etc.) with auto detect 48Vdc Protocol allowing universal PoE powering. Providing hours of scalable battery backup during electrical outages, the Li-36 Micro UPS also offers an integrated Battery Management System (BMS), L-Ion Technology, PoE audible and visual alarming, user replaceable battery pack, remote signal alarming (telemetry), and 5 year warranty.


Fiber-to-the-home (FTTH, FTTP, FTTx)

Customer Premise Equipment

VoIP Backup

Cable Modems (eMTA)

Portable Power

Multi-Dwelling Unit (MDU)

Single Family Unit (SFU)

Wireless Local Loop

PoE Powering


Desktop or Wall-Mountable

Versatile design allows for World’s easiest wall-mountable solution or out-of-the-box desktop install

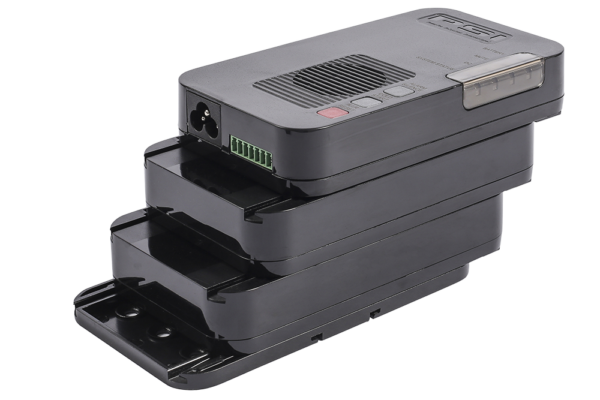

Scalable Capacity

Innovative stackable battery design allows user to connect up to three battery packs for increased capacity on demand for over 24 hours of battery backup on most CPE devices

Surge Protection - VAC and VDC

Providing the Industry’s highest rated frontend surge protection, rated at 12KVA and providing the Industry’s only reverse surge protection on VDC output connection to offer a fully protected solution for any indoor deployment

Stationary or Portable Power

Install as stationary UPS or charge and use a portable battery power for off grid applications

User Replaceable/Stackable Battery Pack

Battery Pack can be easily added or replaced without network interruption

Network Interface Reset (N.I.R.) Control Function

Allows End User options for push button control to reset VDC power to ONT or CPE device saving costly truck rolls to reset power

Telemetry Interface

Battery Signal Alarming to ONT or CPE device: On Battery, Replace Battery, Battery Missing, Low Battery

Local Visual and Audible Alarming

Onsite Battery Alarming: On Battery, Low Battery, and Replace Battery

PoE Powering

Optional PoE Module Allows for auto-detect 48V output protocol to power nearly any 48Vdc PoE enabled device

Extended Life Battery

10 Year Design Life Battery Pack

Battery Management System (BMS)

Integrated Battery Management System manages battery charging, cell balancing and performs battery self test to protect and extend battery life

Request for Information


    Input Voltage Range: 100Vac-240Vac

    Frequency: 50/60Hz


    Output Voltage (On Vac): 12Vdc (Nominal)

    Output Voltage (On Battery): 12Vdc (Nominal)

    Continuous Power Capacity: 3A(36WATT)


    Battery Type: Lithium lon Battery Pack

    Design Life: 10-15 Years

    Typical Recharge Time: <12 hrs

    Replaceable Pack: Yes

    Surge Protection and Filtering

    Lightning/Surge Protection: Yes(IEC 61000-4-5 2005 LEVEL D)


    Battery Auto-Charge: Yes

    Battery Self-Test: Optional

    Telemetry Interface: Yes

    Local Alarming (Audible/Visual): Yes

    Alarm Silence: Yes

    ONT Reset: Yes

    Cold Start: Yes


    Maximum Dimensions: 155mm×89mm×31mm

    Weight (with one battery pack): 1.76lb


    Operating Temperature: '-10℃ - 49℃(14℉ - 120.2℉) at full power

    Storage Temperature: '-30℃ - 65℃(-22℉ -149℉)
