Li-36 Battery Upgrade

Product Overview

Approved for Consolidated Communications Service

Your Consolidated Communications telephone service is provided over our Fiber to the Premises (FTTP) network. The fiber network uses hair-thin strands of glass fiber and laser-generated pulses of light called fiber optics to transmit your voice communications. This very reliable network differs from Consolidated’s more traditional copper wire based network in one key way: If electrical power is lost at your home, your landline voice telephone service will not work and you will not be able to dial 911 in an emergency unless you have a working backup power source.

To ensure you always have a working home phone, it is suggested to purchase a UPS (Uninterruptible Power Supply). UPS is used to restore power to the Optical Network Terminal (ONT) when commercial power goes down from the power company. The ONT will be powered while commercial power is down for 8 hours or 24 hours based on the PSI configuration. The ONT provides the Ethernet connection and voice connection to the home from Consolidated Communications. Other Ethernet devices would need their own UPS and battery(s) to keep power to the voice service if other devices are used. This may include a Modem and Analog Terminal Adapter (ATA) for VoIP service. For VoIP Service, if you have a Modem and ATA at your premise shown in the pictures below, these devices will need to be backed up as well to maintain your VoIP service. Please verify equipment before purchase.

Installation is simple by sliding in battery modules on to your current power supply, the Li-36 UPS. The Li-36 UPS is designed as the world’s only scalable capacity UPS for fiber/VoIP services. Li36 UPS physically is a very small foot print (6.1in x 3.5in x 2.25) with a single battery module weighing total 1.76lbs.

Download Installation Guide

SKU: PS36L-U7-2-1 Category: Uncategorized

Description

Battery Module Upgrade 8 or 24 hours

For customers with an installed Li-36 UPS with fiber Internet and a landline or (CA, IL, KS, PA, and TX) VoIP phone line.

8-Hour Solution

PN PS36L-EX-2 Li-36 UPS Upgrade to 8 hours of Zhone ONT backup

Qty 1 PS36L-EX-2 Battery Module 10 year design life

$99.95

16-Hour Solution

PN PS36L-2EX-16 Li-36 UPS Upgrade to 16 hours of Zhone ONT Backup

Qty 2 PS36L-EX-2 Battery Module 10 year design life
$199.95

24-Hour Solution

PN PS36L-3EX-24 Li-36 UPS Upgrade to 24 hours of Zhone ONT Backup

Qty 3 PS36L-EX-2 Battery Module 10 year design life

Qty 1 PSPBL-3 3 position backplane

$299.95

Device – Adtran 411 – 8 Hour Solution – For customers in NNE, Port St. Joe and Simla with fiber landline or MN and NNE with fiber VoIP.

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$148.95

Device – Adtran 411 – 16 Hour Solution – For customers in NNE, Port St. Joe and Simla with fiber landline or MN and NNE with fiber VoIP.

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$248.95

Device – Adtran 411 – 24 Hour Solution – For customers in NNE, Port St. Joe and Simla with fiber landline or MN and NNE with fiber VoIP.

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$348.95

Device – Adtran 622V – 8 hours Solution – For customers in NNE and MN with fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$148.95

Device – Adtran 622V – 16 hours Solution – For customers in NNE and MN with fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$248.95

Device – Adtran 622V – 24 hours Solution – For customers in NNE and MN with fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

PN PS7P55-25-135 Qty 1 Adapter, 5.5mmx2.5mm to 3.5mmx1.35mm

$348.95

Device – Zyxel VMG 4927 – 8 Hour Solution – Customers with fiber VoIP or IL, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$148.95

Device – Zyxel VMG 4927 – 16 Hour Solution – Customers with fiber VoIP or IL, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$248.95

Device – Zyxel VMG 4927 – 24 Hour Solution – Customers with fiber VoIP or IL, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$348.95

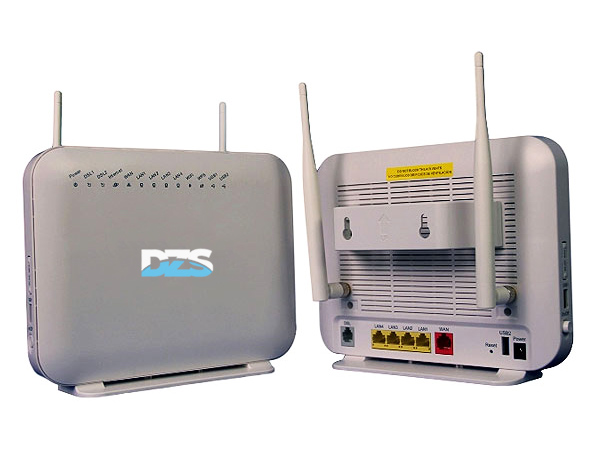

Device – Zhone 6729 – 8 Hour Solution – Customers in CA, IL, MN, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
$148.95

Device – Zhone 6729 – 16 Hour Solution – Customers in CA, IL, MN, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
$248.95

Device – Zhone 6729 – 24 Hour Solution – Customers in CA, IL, MN, PA and TX with copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
$348.95

Device – Zhone 5225A – 8 Hour Solution – Customers in CA, IL, PA and TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$148.95

Device – Zhone 5225A – 16 Hour Solution – Customers in CA, IL, PA and TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$248.95

Device – Zhone 5225A – 24 Hour Solution – Customers in CA, IL, PA and TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$348.95

Device – Zhone 5222XG – 8 Hour Solution – Customers in CA, IL, KS, PA & TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
Zhone 5222XG
$148.95

Zhone 5222XG – 16 Hour Solution – Customers in CA, IL, KS, PA & TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
Zhone 5222XG
$248.95

Zhone 5222XG – 24 Hour Solution – Customers in CA, IL, KS, PA & TX fiber VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm
Zhone 5222XG
$348.95

Device – Innomedia MTA8328-1N – 8 Hour Solution – For customers with NNE fiber VoIP and CA, IL, MN, PA and TX copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 1 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$148.95

Device – Innomedia MTA8328-1N – 16 Hour Solution – For customers with NNE fiber VoIP and CA, IL, MN, PA and TX copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 2 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$248.95

Device – Innomedia MTA8328-1N – 24 Hour Solution – For customers with NNE fiber VoIP and CA, IL, MN, PA and TX copper VoIP

PN PS36L-P7 Qty 1 Power Supply- required with all below solutions

PN PS36L-EX-2 Qty 3 Battery Module 10 year design life

PN PS7P55-25-2 Qty 1 Cable, 5.5mmx2.5mm

$348.95

Optional Product:

PSBPL-2 – 16 Hour Solution

PN PSBPL-2 Qty 1 Optional Backplate for 16-hour solution

$19.00

PSBPL-3 – 24 Hour Solution

PN PSBPL-3 Qty 1 Optional Backplate for 24 hour solution

$24.00

APPLICATIONS

Fiber-to-the-home (FTTH, FTTP, FTTx)

Customer Premise Equipment

VoIP Backup

Cable Modems (eMTA)

Portable Power

Multi-Dwelling Unit (MDU)

Single Family Unit (SFU)

Wireless Local Loop

PoE Powering

Features

Desktop or Wall-Mountable

Versatile design allows for World’s easiest wall-mountable solution or out-of-the-box desktop install

Scalable Capacity

Innovative stackable battery design allows user to connect up to three battery packs for increased capacity on demand for over 24 hours of battery backup on most CPE devices

Surge Protection - VAC and VDC

Providing the Industry’s highest rated frontend surge protection, rated at 12KVA and providing the Industry’s only reverse surge protection on VDC output connection to offer a fully protected solution for any indoor deployment

Stationary or Portable Power

Install as stationary UPS or charge and use a portable battery power for off grid applications

User Replaceable/Stackable Battery Pack

Battery Pack can be easily added or replaced without network interruption

Network Interface Reset (N.I.R.) Control Function

Allows End User options for push button control to reset VDC power to ONT or CPE device saving costly truck rolls to reset power

Telemetry Interface

Battery Signal Alarming to ONT or CPE device: On Battery, Replace Battery, Battery Missing, Low Battery

Local Visual and Audible Alarming

Onsite Battery Alarming: On Battery, Low Battery, and Replace Battery

PoE Powering

Optional PoE Module Allows for auto-detect 48V output protocol to power nearly any 48Vdc PoE enabled device

Extended Life Battery

10 Year Design Life Battery Pack

Battery Management System (BMS)

Integrated Battery Management System manages battery charging, cell balancing and performs battery self test to protect and extend battery life

Request More Info

Request for Information

Technical Specifications

INPUT

Input Voltage Range: 100Vac-240Vac

Frequency: 50/60Hz

OUTPUT

Output Voltage (On Vac): 12Vdc (Nominal)

Output Voltage (On Battery): 12Vdc (Nominal)

Continuous Power Capacity: 3A(36WATT)

Battery

Battery Type: Lithium lon Battery Pack

Design Life: 10-15Years

Typical Recharge Time: ＜12 hrs

Replaceable Pack: Yes

SURGE PROTECTION AND FILTERING

Lightning/Surge Protection: Yes(IEC 61000-4-5 2005 LEVEL D)

Management

Battery Auto-Charge: Yes

Battery Self-Test: Optional

Telemetry Interface: Yes

Local Alarming (Audible/Visual): Yes

Alarm Silence: Yes

ONT Reset: Yes

Cold Start: Yes

PHYSICAL

Maximum Dimensions: 155mm×89mm×31mm

Weight (with one battery pack): 1.76lb

ENVIROMENTAL

Operating Temperature: -10℃ - 49℃(14℉ - 120.2℉) at full power

Storage Temperature: -30℃ - 65℃(-22℉ -149℉)

Technical Support

Order Now If you are experiencing issues with your battery, please call (270) 813-1110.
