NXG-Vision Micro UPS

#PS18L-U2

Product Overview

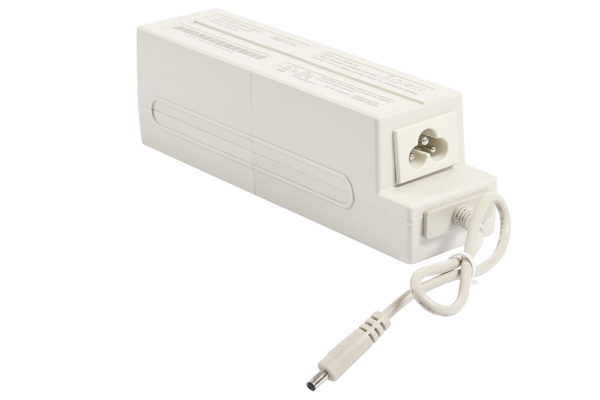

Introducing the World’s smallest Vdc UPS, the NXG-Vision Micro UPS is designed to supply continuous commercial and standby power to 12VDC Customer Premise Equipment (CPE). The NXG-Vision Micro UPS is rated for use with all CPE devices 12VDC 18 Watts (1.5 Amps) or less and offers a unique design for stationary in home CPE devices or portable battery backup for trouble shooting, test and turn up of CPE devices anywhere within the network. The NXG-Vision Micro UPS (Model: PS18L-U2) can be partnered throughout the home or small business to support Micro ONT Models: Adtran 401/411, Calix GigaPoint 801/803 and iPhotonix 8201 and also provide local battery backup to customer access points, wireless modems, routers, and embedded multimedia terminal adapters (eMTA). Designed for hours of battery backup during electrical outages, the NXG-Vision Micro UPS (Model: PS18L-U2) also offers an integrated Battery Management System (BMS), L-Ion Technology, audible and visual alarming, user replaceable battery pack, and 5 year warranty

SKU: PS18L-U2 Category:
APPLICATIONS

Fiber-to-the-home (FTTH, FTTP, FTTx)

Customer Premise Equipment

VoIP Backup

Cable Modems (eMTA)

Portable Power

Multi-Dwelling Unit (MDU)

Single Family Unit (SFU)

Wireless Local Loop

Features

World's Smallest Vdc UPS

Innovative design offers hours of battery backup in a in a footprint smaller than a dollar bill

Designed for use with Micro ONT's

Supports all Micro ONT Applications: Adtran 401/411, Calix GigaPoint 801/803 and iPhotonix 8201

Surge Protection - VAC and VDC

Providing the Industry’s highest rated frontend surge protection, rated at 12KVA and providing the Industry’s only reverse surge protection on VDC output connection to offer a fully protected solution for any indoor deployment

Wall Mountable

Easily wall mount with optional PSI All-In-One Micro Enclosure or UPS Cradle

Stationary or Portable Power

Install as stationary UPS or charge and use a portable battery power for test and turn up of CPE Devices

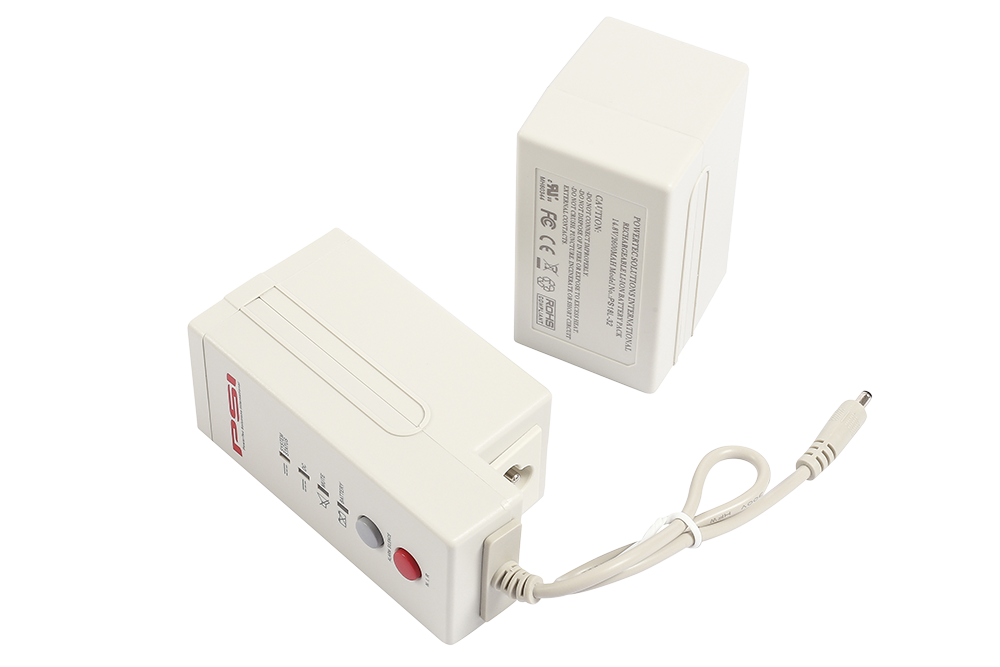

User Replaceable/Stackable Battery Pack

Battery Pack can be easily added or replaced without network interruption

Network Interface Reset (N.I.R.) Control Function

Allows End User options for push button control to reset VDC power to ONT or CPE device saving costly truck rolls to reset power

Local Visual and Audible Alarming

Onsite Battery Alarming: On Battery, Low Battery, and Replace Battery

Extended Life Battery

10 Year Design Life Battery Pack

Battery Management System (BMS)

Integrated Battery Management System manages battery charging, cell balancing and performs battery self test to protect and extend battery life

Request for Information

    Technical Specifications
    INPUT

    Input Voltage Range: 100Vac-240 Vac

    Frequency: 50/60Hz

    OUTPUT

    Output Voltage (On Vac): 12Vdc (Nominal)

    Output Voltage (On Battery): 12Vdc (Nominal)

    Continuous Power Capacity: 1.5A (18WATT)

    Battery

    Battery Type: Lithium Ion Battery Pack

    Design Life: 10-15 Years

    Typical Recharge Time: < 10 hrs

    Replaceable Pack: Yes

    SURGE PROTECTION AND FILTERING

    Lightning/Surge Protection: Yes (IEC 61000-4-5- 2005 Level D)

    Management

    Battery Auto-Charge: Yes

    Battery Self-Test: Yes

    Telemetry Interface: No

    Local Alarming (Audible/Visual): Yes

    Alarm Silence: Yes

    ONT Reset: Yes

    Cold Start: Yes

    PHYSICAL

    Maximum Dimensions: 6.4 x 1.69 x 1.96 (in.)

    Weight (with one battery pack): 1.25 lb

    ENVIROMENTAL

    Operating Temperature: -15 - 50C at full power

    Storage Temperature: -30 - 65C (-22F - 149F)
