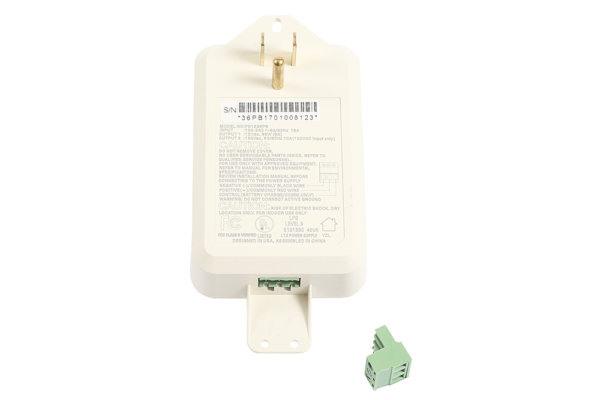

NXGM – Micro ONT Power Supply Series – Indoor

#PS1236PB-2

Custom designed to deliver FTTx power, the NXGM leads the charge as the most effective and efficient choice to protect and power residential Optical Network Terminals (ONT). The NXGM model PS1236PB-2 offers the Industry’s leading Vac and Vdc surge protection and is designed to supply continuous commercial power to 12Vdc Optical Network Terminals 36 watts (3A) or less. Rated for indoor use…

Description

Custom designed to deliver FTTx power, the NXGM leads the charge as the most effective and efficient choice to protect and power residential Optical Network Terminals (ONT). The NXGM model PS1236PB-2 offers the Industry’s leading Vac and Vdc surge protection and is designed to supply continuous commercial power to 12Vdc Optical Network Terminals 36 watts (3A) or less. Rated for indoor use, the NXGM model PS1236PB-2 is the perfect solution for FTTx deployments where battery backup is not required for all installations, saving Service Providers thousands of dollars in ongoing battery repair/replacement and truck rolls. If needed, the NXGM model PS1236PB-2, has integrated battery charger to be used with inline Alpha FlexPoint BBPS battery backup. Designed for long life and clean power to one or multiple Optical Network Terminals (ONT), the NXGM series ONT power supplies also offer 12KVA surge protection, ONT reset capabilities, and 3-year warranty.

APPLICATIONS

Fiber-to-the-home (FTTH, FTTP, FTTx)

Customer Premise Equipment

Multi-Dwelling Unit (MDU)

Single Family Unit (SFU)

Wireless Local Loop

Features

World's Smallest FTTx ONT Power Supply

Innovative design offers FTTx's most efficient ONT Power solution. Install anywhere within the home

Designed for use with any residential ONT/ONU

Supports all residential ONT/ONU deployments. 12Vdc 36 Watt potential output

Surge Protection - VAC and VDC

Providing the Industry’s highest rated frontend surge protection, rated at 12KVA and providing the Industry’s only reverse surge protection on VDC output connection to offer a fully protected solution for any indoor deployment

Integrated Charge Controller

Partner with inline FTTx Battery Backup for optional "add-on" ONT backup power

Network Interface Reset (N.I.R.) Control Function

Allows End User options for push button control to reset VDC power to ONT or CPE device saving costly truck rolls to reset power

Extended Life Warranty

The NXGM Series ONT Power Supplies offer standard 3 year replacement warranty

TECHNICAL SPECIFICATIONS
INPUT

Input Voltage Range: 100VAC - 240VAC

Frequency: 50/60Hz

OUTPUT

Output Voltage: 12Vdc

Continuous Power Capacity: 36 WATT

Output Interface: 3 Position Terminal

Output Charging Voltage Control: 5Vdc (5mA DC max)

Battery Module (optional): Alpha FlexPoint BBPS

SURGE PROTECTION AND FILTERING

Lightning/Surge Protection: IEC 61000-4-5 2005 Level D

PHYSICAL

Maximum Dimensions: 2.7"H x 2.8"W x 5.4"L

Weight: .77lb

ENVIROMENTAL

Operating Temperature: -40C - +40C

Storage Temperature: -40C - +45C
