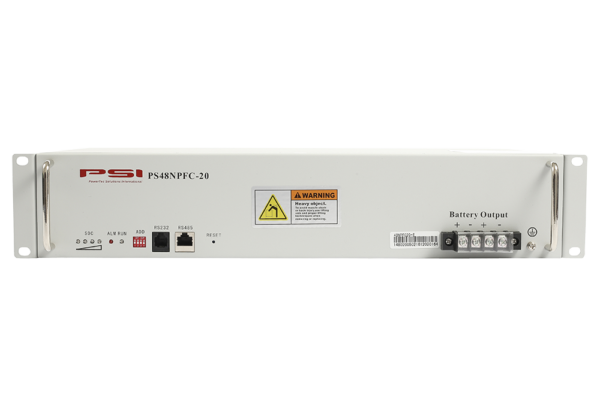

PSI Micro Vision 48V Rackmount Battery (20AH)

#PS48NPFC20

Product Overview

The Micro Vision 48V Battery System delivers the most efficient, intelligent, and cleanest long-life battery backup solution to 48Vdc Telecommunications Systems. Developed specifically for Telecom equipment as a drop-in replacement to legacy 48Vdc Sealed Lead Acid Battery strings, the Micro Vision’s ease of installation, integrated Battery Management System (BMS) and maintenance free design offers the Industry’s future for Telecom Standby Power. The Micro Vision 48V Battery Series is offered in 20AH, 50AH and 100AH models and is compatible with all standard Telecom Rectifiers or for use with standard 48V Solar and Charge Controller deployments. With a 40-70% smaller footprint, 40-70% less weight than legacy Sealed Lead Acid, and the highest level of operational efficiency with intelligent Battery Management System, the Micro Vision 48V Battery Series offers the future of Telecom Standby power.

APPLICATIONS

xDSL/FTTH/FTTX Standby Power

'-48V Standby Power

Sealed Lead Acid Replacement

Wireless Standby Power

Portable Power

Multi-Dwelling Unit (MDU)

Features

20 Year Battery (Design Life)

40%-70% Smaller Footprint than Sealed Lead Acid (SLA) Batteries

40%-70% Less Weight than Sealed Lead Acid (SLA) Batteries

Comprehensive Communication via Ethernet - Google Network Mapping, SNMP Alarming, Real-time Monitoring

Parallel Operation for Ease of Scalability

Installed by Anyone in Less than 5 Minutes

Stationary or Portable Power

State of Charge and State of Health Indicator

Redundant Safety

More Usable Capacity than Sealed Lead Acid (SLA)

Built-in Automatic Protection - Over-Charge/Over-Discharge/Over-Temperature Protection

Internal Cell Balancing

Communication of Monitored Data via Battery Management System (BMS)

Request for Information

    Technical Specifications
    Battery Specification

    Rated Voltage: 48Vdc

    Rated Capacity: 20Ah

    Discharge Current (Max): 20Ah

    Discharge Voltage Cutoff: 40.5V

    Charge Current (Max): 20Ah

    Charge Voltage: 52-55V

    Design Life: 20 Years

    Physical

    Dimensions (H x W x D): 88mm x 442m x 245mm (3.46" x 17.4" x 9.65")

    Rack Units: 2RU

    Weight: 13.4kg (29.54 lbs)

    Terminal Size: M4/10mm (Screw Size/Cable Width)

    LCD Screen: Optional

    Breaker: Optional

    Parallel Capacity (Max): 16 units

    Status Indicators

    State of Charge: SOC

    Alarm: ALM

    Run: RUN

    Communications Port

    Serial: RS232/RS485

    Ethernet: ETH

    Environmental

    Operating Temperature: -20°C to +60°C
